- Specimen stage: StagErase™ eraseable mechanical stage, 125×125 mm, 62×24 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.
- LCD screen: High definition 7” LCD
- Camera: 1920×1080 pixels, 30fps (video). Up to 1844×1080 pixels (photo).

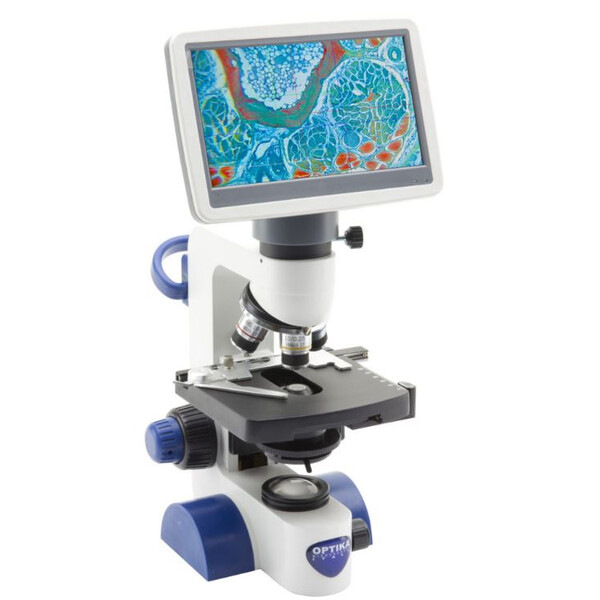

B-62V
Observation mode: Brightfield.
Digital head:
LCD screen: High definition 7” LCD.
Camera: 1920×1080 pixels, 30fps (video). Up to 1844×1080 pixels (photo).
Storing capacity: On Micro Sd card
Video recording: Yes
Measuring funcion: Yes, simple line measurement
Optical head with eyepiece included
Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.
Objectives:
– Achromatic 4x/0.10, with anti-fungus treatment
– Achromatic 10x/0.25, with anti-fungus treatment
– Achromatic 40x/0.65, with anti-fungus treatment
Specimen stage: StagErase™ eraseable mechanical stage, 125×125 mm, 62×24 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
Illumination: 1 W LED, with brightness control, rechargeable batteries.
Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.
