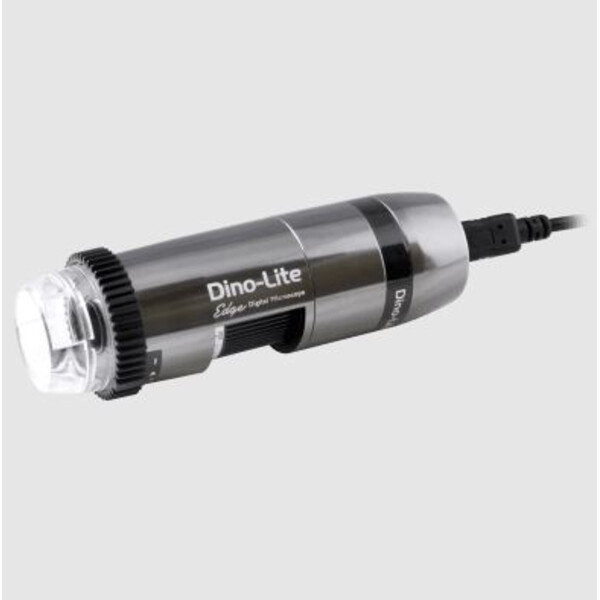

Dino-Lite AM4117MZTL
Das Dino-Lite AM4117MZTL ist Teil der EdgePLUS Serie, einer speziellen Kategorie innerhalb der LWD-Reihe (große Arbeitsentfernung). Es bietet einen Vergrößerungsbereich von 10 - 140x mit 1,3 MP und einem USB 2.0-Anschluss bei 30 BpS. Es bietet eine hervorragende Bildqualität, Klarheit und Farbwiedergabe in einem robusten, kompakten und ansprechenden Metallgehäuse.
Die wichtigsten Merkmale des AM4117MZTL sind:
- 1.3 Megapixel EDGE PLUS sensor
- Flexible LED Control (FLC)
- 10-140x vergrößerung
- Großer arbeitsabstand
- Integrierten polarisator
- 30fps
- Robustes metallgehäuse
- Und mehr...
Specifications
Lighting
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut-filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polarizer: Yes, linear
Optics
- Magnification: 10-140x
- Macro zoom: No
- Working distance: Long
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 1.3 Megapixel (1280x1024)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 11.1 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF (max 1.3MP)
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats(MacOS): MOV
- Imaging standards: DirectShow, UVC
- Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
- Housing material: Metal housing
- Magnification lock: Yes
- Dimensions: 10.5cm (L) x 3.2cm (D)
- Weight: 130g
- Cable length: 1.5m
Features
- Special feature: Flexible LED Control (FLC)
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: Yes
Information
- Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- diffuser cap, N3C-EExtension cap, N3C-L- Long cap, N3C-S- Side light cap
