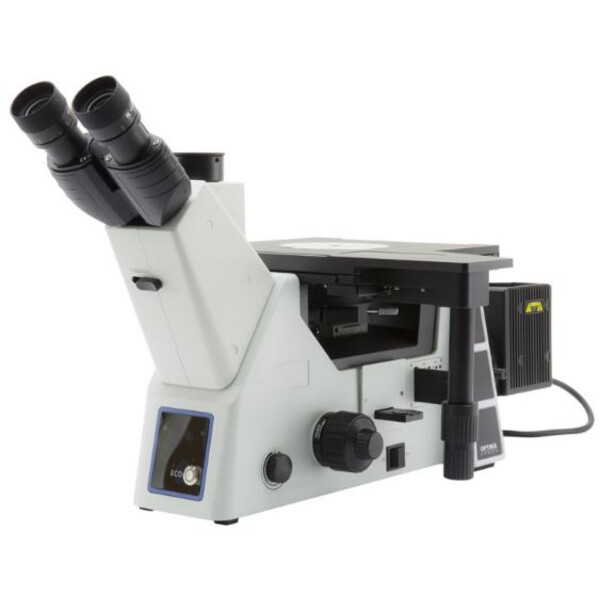

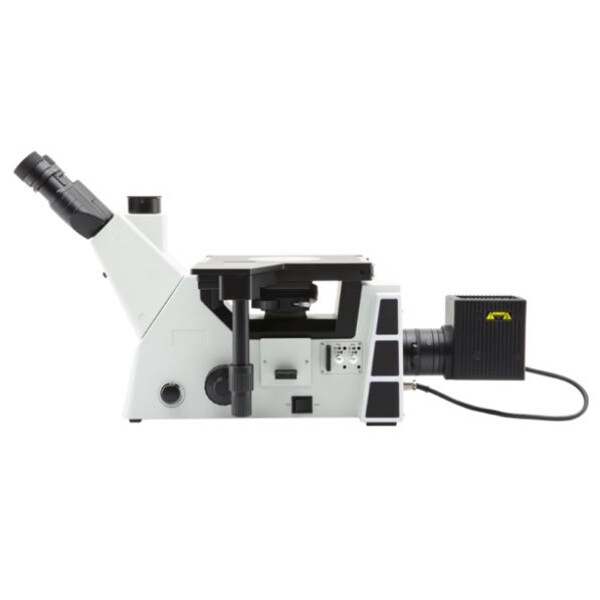

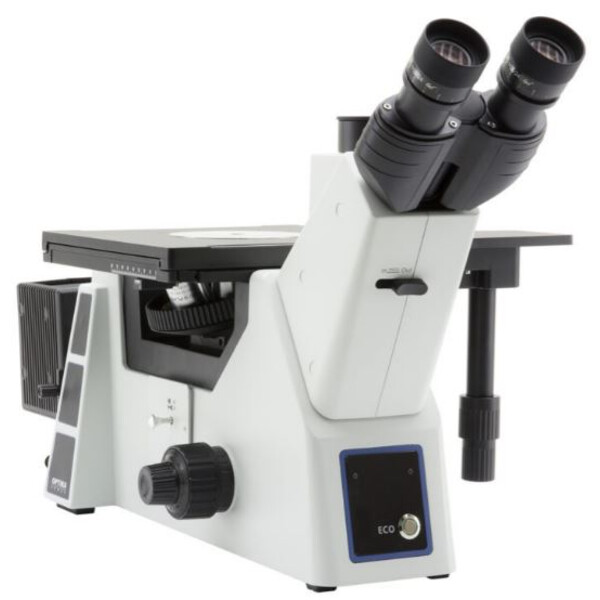

IM-5MET
Head: Trinocular (split ratio: 100/0, 50/50), 45° inclined.
Dioptric adjustment: Both eyepieces.
Eyepieces: WF10x/24 mm, high eyepoint, secured by screw and with retractable rubber cups.
Epi-illumination & filters: Halogen 12 V/100 W with brightness control. With field and aperture diaphragms, polarizer and analyzer filters.
Nosepiece: Quintuple ball bearings revolving nosepiece, reversed.
Objectives: Selectable according to customer’s preferences. All with anti-fungus treatment.
Specimen stage: Mechanical stage, 240×250 mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Objectives (not included)
To be chosen among:
M-1171 – M-1172 – M-1173 – M-1174 – M-1175 – IOS LWD U-PLAN F MET objectives
M-1180 – M-1181 – M-1182 – M-1183 – M-1184 – IOS LWD U-PLAN F MET BD objectives
M-1094 – M-1095 – M-1096 – M-1097 – M-1098 – IOS LWD U-PLAN MET BD objectives
M-1100 – M-1101 – M-1102 – M-1103 – M-1104 – IOS LWD U-PLAN MET objectives
