Optikam WiFi - 4083.WiFi C and C-Short mount, Eyepieces Camera
- Sensor Size 1\2.5”
- PC camera resolution 5 MegaPixels
- WI-FI camera resolution 2 MegaPixels
- Signal output USB 2.0, WiFi
- Audio Signal NO
- Sensor technology Micron CMOS
- Image format 4\3
- Full Image size 2592 x 1944
- Pixel size 2,2 x 2,2 micron
- USB Frame rate Full resolution 3 frames/sec: 2592 x 1944
- USB Frame rate other resolutions 11 frames/sec: 640 x 480, 8 frames/sec: 1024 x 768
- WiFi Frame rate Low resolution 2 frames/sec: 640 x 480 with 10 users
- WiFi Frame rate other resolutions 1 frames/sec: 1024 x 768 with 10 users, 1 frames/3sec: 1600 x 1200 with 10 users
- WiFi Speed 802.11n 150Mbps
- WiFi Signal from the camera
- WiFi Router requirements NO
- WiFi password NO
- WiFi Antenna 2.4GHz 5DB
- WiFi Signal ready to About 40 sec from the first power up
- Ethernet port NO
- Sensitivity 0.53 V/Lux-Second at 550nm
- Signal / noise ratio 40.5 dB
- Dynamic range >60 dB
- Max Exposure time Automatic
- ADC conversion 8 BIT
- Color Depth 8 BIT
- ON board Memory NO
- External Memory Card NO
- External camera power 5 V 2000mA
- Cooling system NO
- External Cooling power NO
- On camera case IR Filter 650 nm
- Automatic White Balance Auto / Man
- Automatic Gain Control Auto / Man
- Automatic Back light control Auto / Man
- Exposure control Auto / Man
- C-Mount connection YES, Available
- CS-Mount connection YES, ready

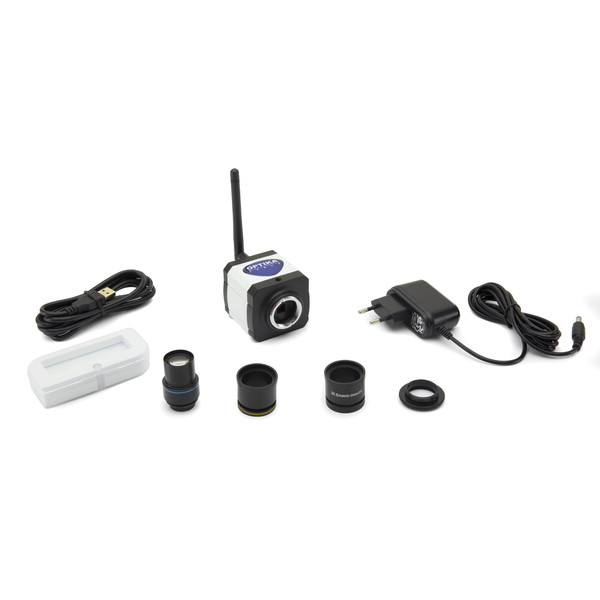

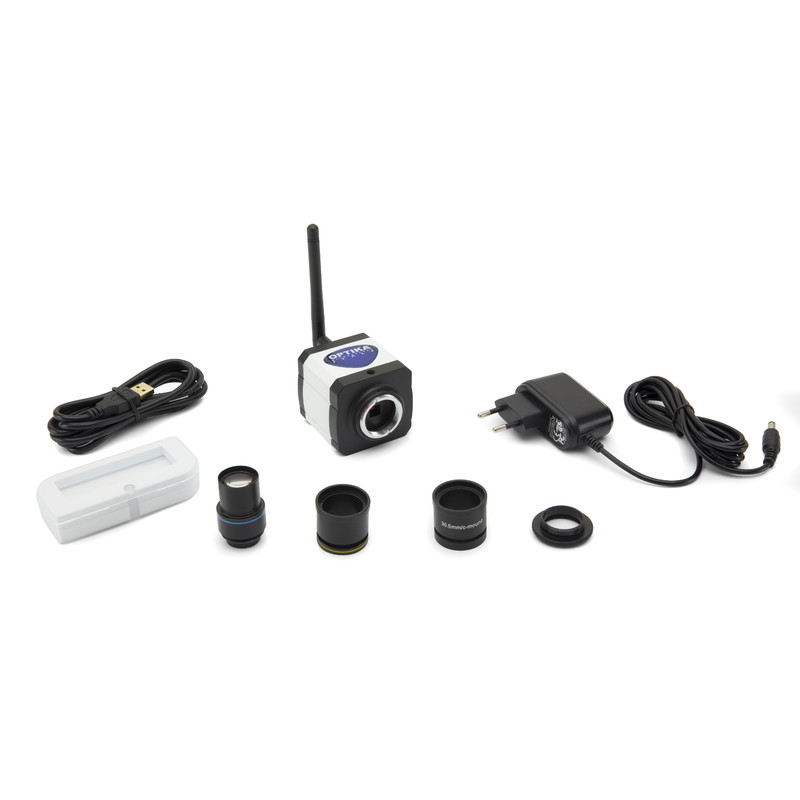

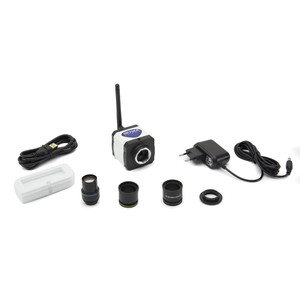

Scope of delivery
- CS-mount to C-mount Ring SI
- Optical adapters 0,45x (for 23mm eyepiece tube)
- Adapters for Binocular & Monocular microscopes 30 and 30,5 mm diameter
- Calibration Slide YES
- Always Included 1.8 m USB cable, power supply, Installation manual, CD Rom
Software specification
- WiFi System requirements Windows Tablet, Android Tablet, IOS Tablet, IOS Phone, Android Phone, Windows Phone, BlackBerry
- WiFi users allowed
- 10 Users: good live view speed,
- 20 Users: slow live view speed,
- 30 Users: very slow live view Speed
- WiFi available APP Via Browser: NO APP is needed
- WiFi Additional available APP For IOS and Android
- WiFi Capture features Image size
- WiFi Control parameters Automatic
- USB System requirements Windows Vista / win7 / win8 / win10 / 32-64 bit , USB 2.0
- USB Supplied Software Optika Vision Lite
- USB Driver types No Driver ( Microsoft Driver )
- USB Capture features Continuous auto white balance, continuous auto exposure, image size, image capture,compressed video capture
- USB Control parameters Brightness, contrast, tonality, saturation, sharpness, gamma, white Balance, background
- Working temperature +0 up to +50°C
- Storage temperature -10 up to +50°C
- Relative Humidity up to 80%
- Dimensions 7 x 7 cm
- Height: 4 cm
- Height with optical adapter: 12 cm
- Weight 80 gr
