TABLET SERIE

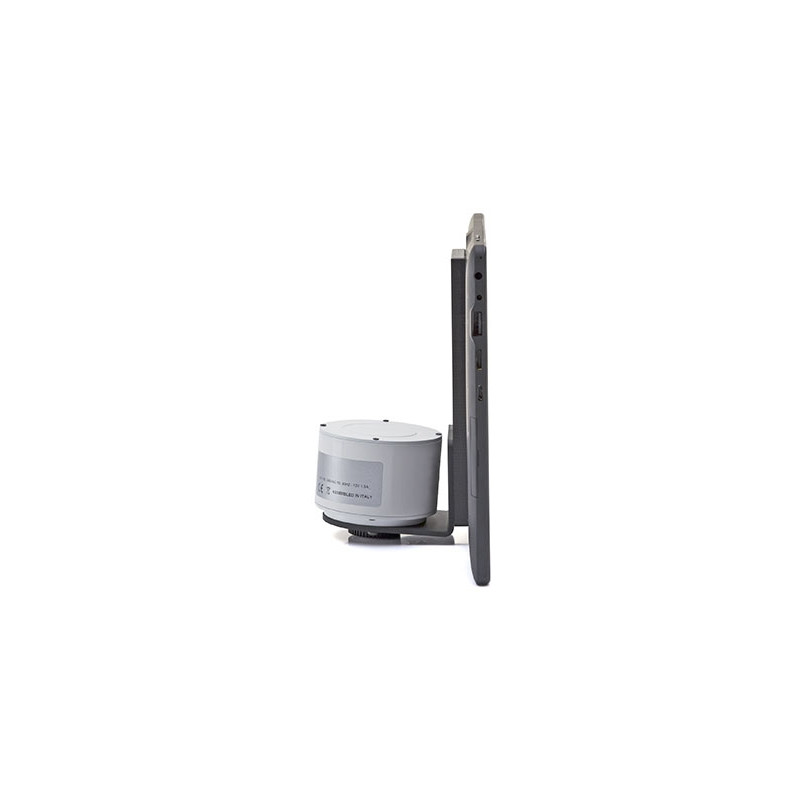

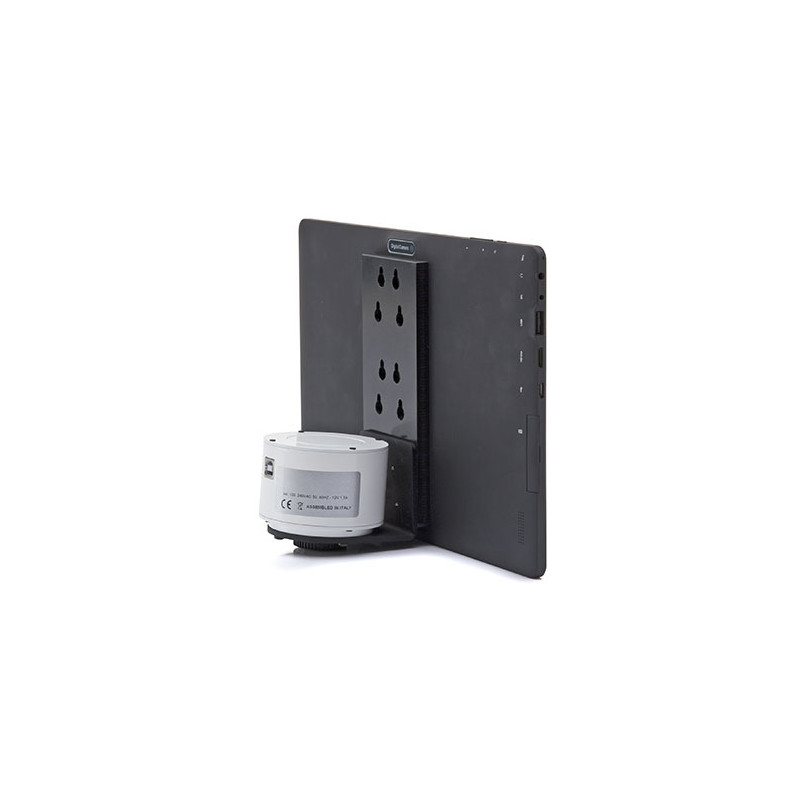

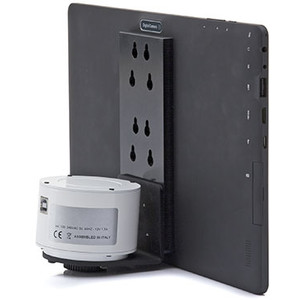

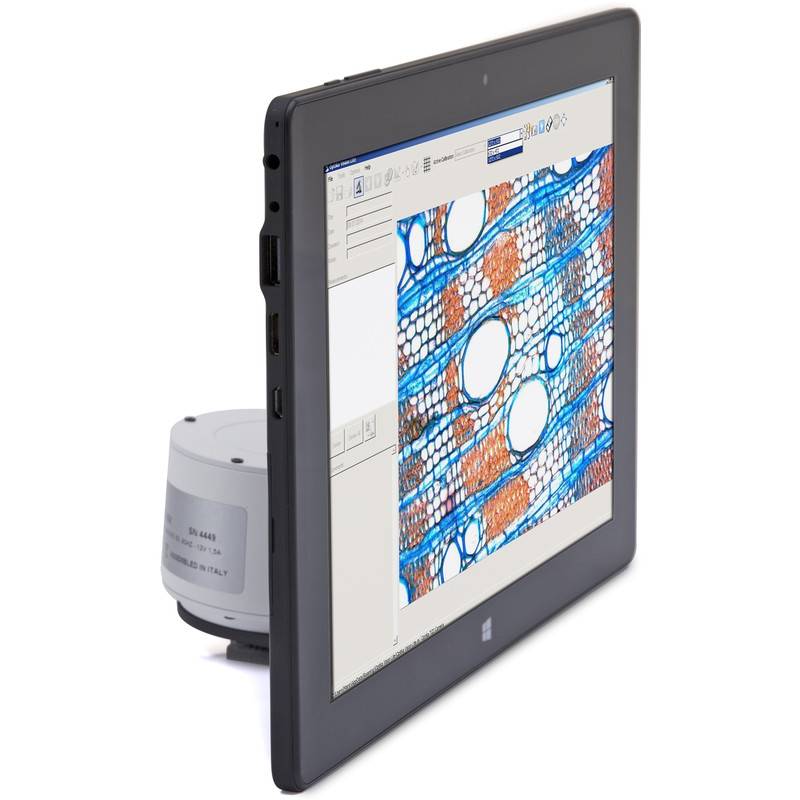

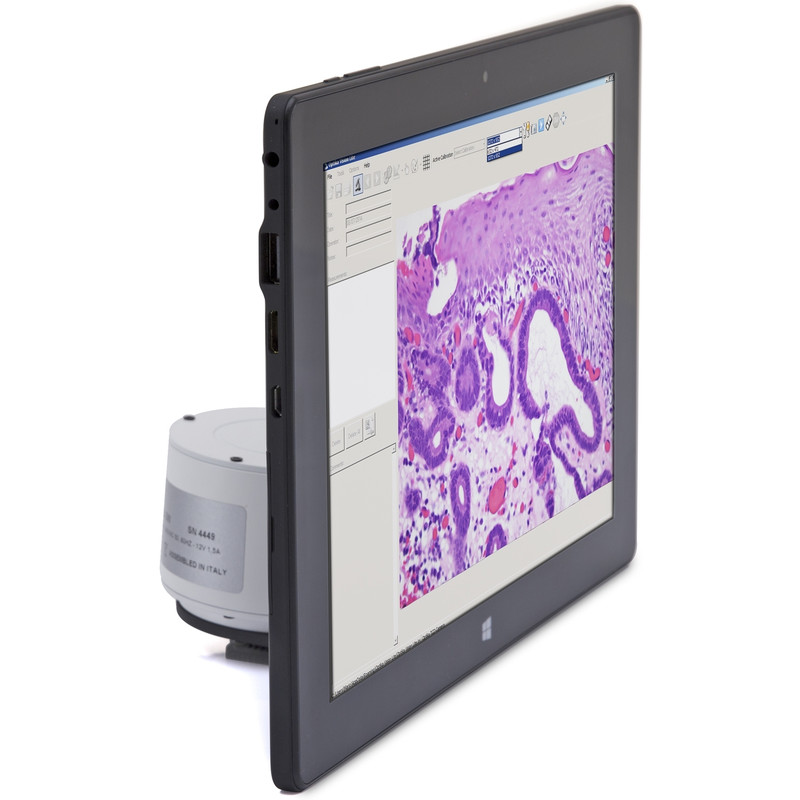

Tablet mit C-mount Kamera
“Eine 2 in1Lösung in der digitalen Mikroskopie”

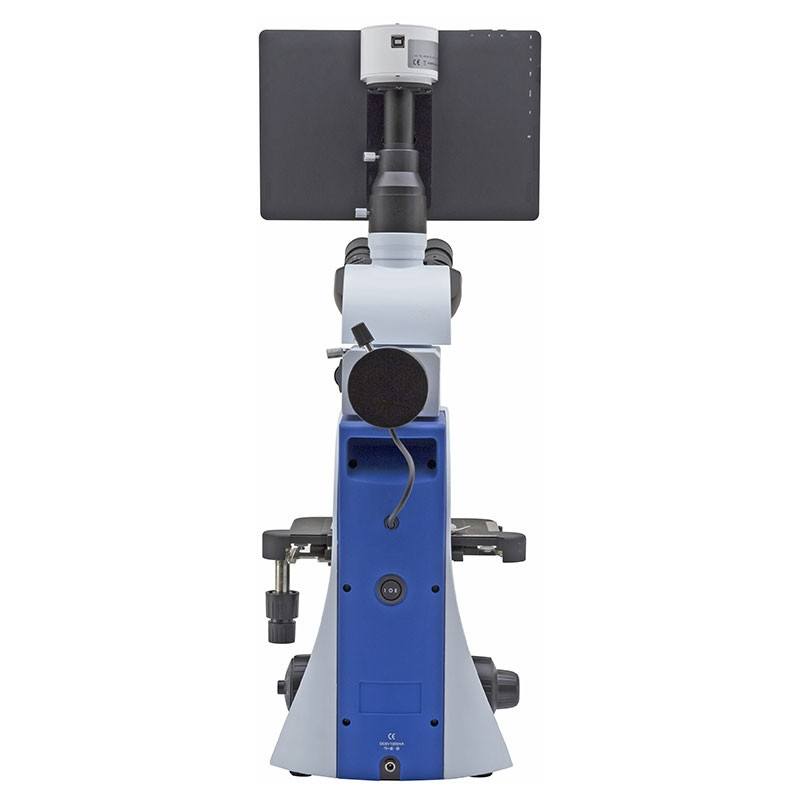

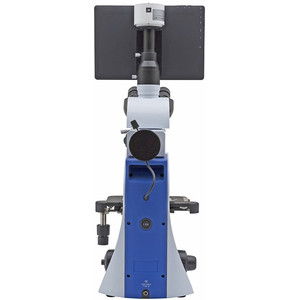

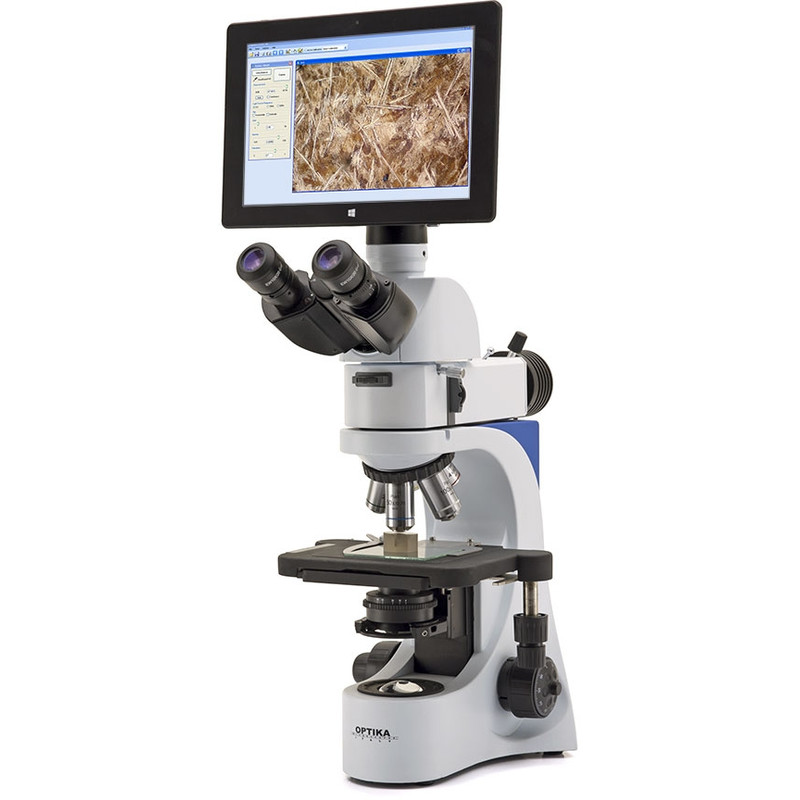

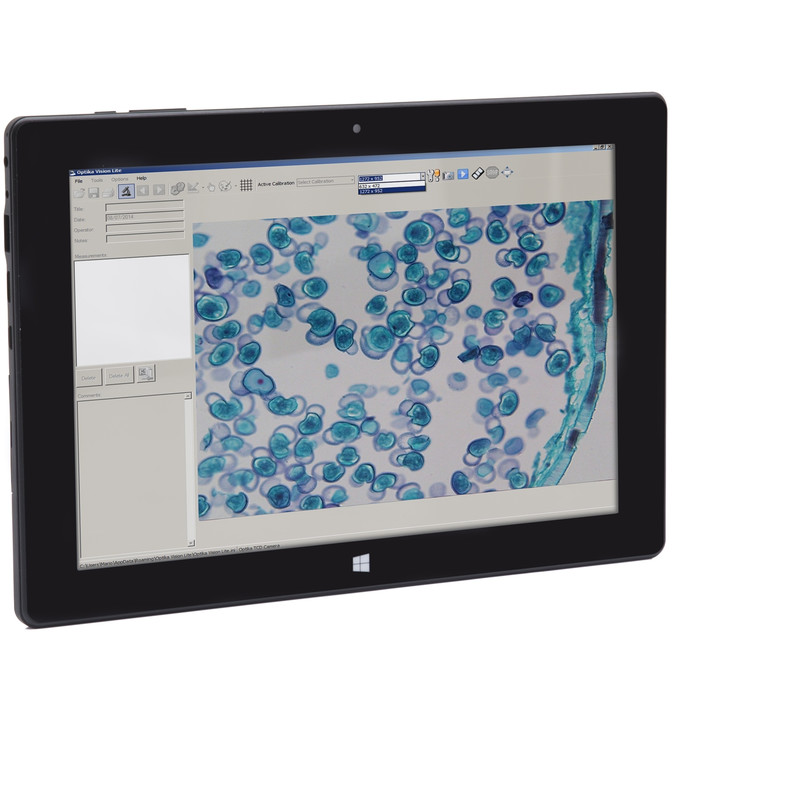

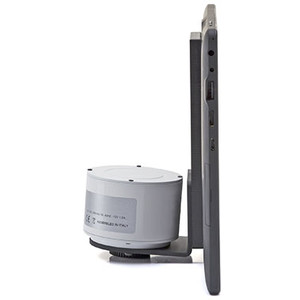

Ein Tablet mit 10.1” LCD touch screen, in Kombination mit einer 3Mp oder 5Mp Kamera: Ein universelles System, das auf jedes trinokulare Mikroskop montiert werden kann.
TABLET
- Operating System: Windows 164-bit
- Language: Multilanguages already installed
- CPU: Intel® Atom™ Z3735F, Quad core (4 Core)
- CPU speed: 1.44 GHz
- Graphics Card:Intel® HD Graphics 400
- Memory: Ram 4 GB LPDDR3
- LCD display:LED 10.1” IPS Multi Touch Screen
- LCD resolution: 1920x1200
- Storage: Hdd 64GB
- Network: Wireless Bluetooth 4.0:
- Input ports Micro USB (OTG) - USB Type-C - Micro SD card reader
- Output ports Microphone - Headphone - Micro HDMI
- Battery Type Lithium-ion
- Battery capacity 6500 mAh
- Power consumption 15W
- Power supply 5V 3A
- Dimensions (mm) 261X167X9
- Weight (Kg) 0.53
- Language Multilanguag
Model: TB-5W
Typology: TABLET WITH INTREGRATED CAMERA
Description: Tablet with Camera for c-mount connection.
- Digital camera resolution: 5,0 MegaPixels
- Analog camera resolution: NO
- Signal output: USB 2.0
- Audio Signal: NO
- Sensor Size: 1\2,5”
- Sensor technology: CMOS
- Image format: 4\3
- Full Image size: 2592 x 1944
- Pixel size: 2,2 x 2,2 micron
- Frame rate full resolution: 7 frames/sec (2592 x 1944)
- Frame rate other resolutions: 46 frames/sec (640x480)
- Sensitivity: 0,53 V/Lux-second (550 nm)
- Signal / noise ratio: 38 dB
- Dynamic range: 70.1 dB
- Max Exposure time: 2,9 sec
- ADC conversion: 8 BIT
- Color Depth: 8 BIT
- ON board Memory: NO
- External Memory Card: NO
- External camera power: PC USB
- Cooling system: NO
- External Cooling power: NO
- On camera case IR Filter: 700 nm
- Automatic White Balance: Auto / Man
- Automatic Gain Control: Auto / Man
- Automatic Back light control: Auto / Man
- Exposure control: Auto / Man
- C-Mount connection: YES
- CS-Mount connection: NO
- CS-mount to C-mount Ring: NO
- Optical adapters: 0,45x (for 23mm eyepiece tube) , this allows the Tablet to move 360 degree
- Adapters for Binocular & Monocular microscopes: NO
- Calibration Slide: YES
- Always Included: 0.5 m USB cable
- Supplied Software: Optika Vision Lite
- Driver types: Optika driver, TWAIN
- Capture features: Continuous auto white balance, continuous auto exposure, image size, image capture, compressed video capture
- Control parameters: Image size, brightness, gain, exposur time, colors, monochrome, color enhancement, flip, speed.
- Working temperature: +0 up to +60°C
- Storage temperature: -20 up to +70°C
- Relative Humidity: 45% up to 85%
- Dimensions: Height: 5,5cm
- Diameter: 7cm Height with optical adapter: 10cm
- Weight: 220 gr
