B-150 Series
The B-150 series has been designed to fulfill all requirements of educational laboratories.
Obtain clear images at three (40x, 100x and 400x) or four (40x, 100x, 400x and 600x or 1000x) magnifications with 18mm field number. All in a compact and easy to carry size. The entire series is equipped with 1W X-LED1 illumination for bright and uniform light. If a cordless microscope is needed, the R Models are is your choice as they come with a rechargeable battery.

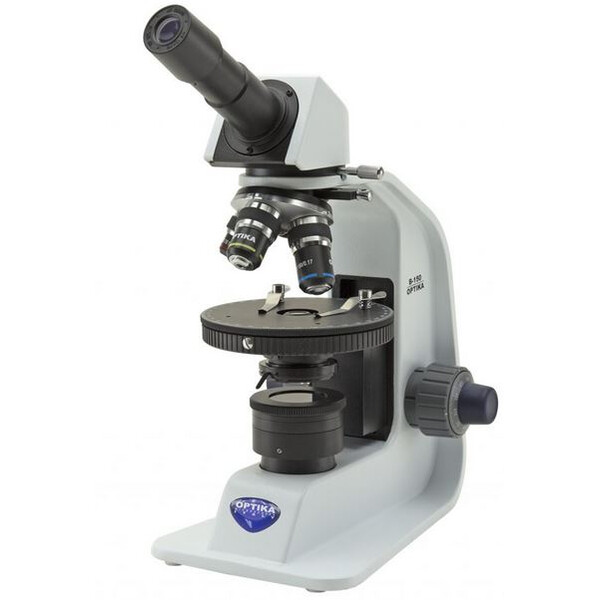

B-150P-MRPL
Observation mode: Brightfield, Polarized Light.
Head: Monocular, 30° inclined; 360° rotating.
Eyepiece: WF10x/18 mm, secured by screw.
Nosepiece: Quadruple ball bearings revolving nosepiece.
Objectives:
– N-PLAN 4x/0.10, with anti-fungus treatment
– N-PLAN 10x/0.25 , with anti-fungus treatment
– N-PLAN 40x/0.65 , with anti-fungus treatment
Specimen stage: Rotatable round stage, 120 mm diameter.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: N.A. 1.25, pre-centered, fixed with iris diaphragm.
Illumination: X-LED1 with white 1 W LED and light intensity control.
Color temperature: 6,300 K. Li-Ion battery for long lasting operation. Multi-plug 100-240Vac/5Vdc external power supply.
Polarizing filters: Rotating Polarizer (swing-out) and fixed Analyzer (sliding-out).
