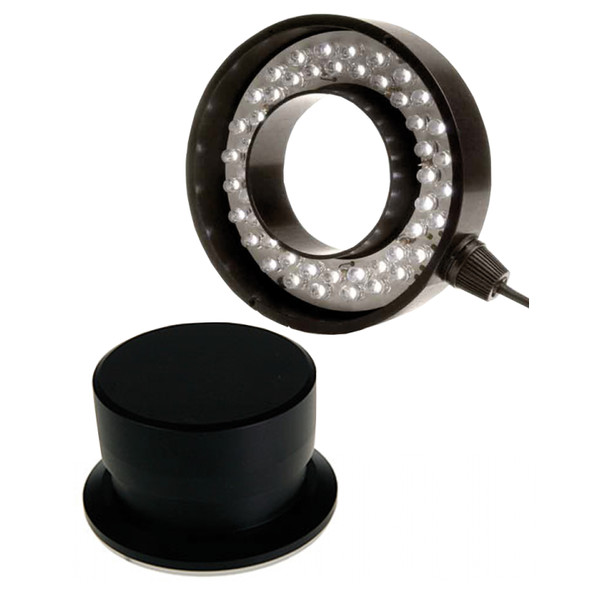

Ringlicht LE.1980, 48 LEDs, analoger controller

TECHNICAL SPECIFICATIONS

• High Power LED Ring light source Illuminations LEDs have gained acceptance in both quality control applications and in production.
• These illumination solutions can be diffuse or optimized with dedicated Fresnel lenses for shorter or longer working distances.
• Light emitting diodes have the advantage of being a cold light source with a constant spectral output over very long life times.
• LED ring light source with maximum illuminance and metal contruction for professional usage.
• With adjustable intensity, optional power supply/ segment controller, diffuser, polarizers and Fresnel focusing lenses for perfect illumination of object

Highlights

• Professional high powerLED ring light source
• 48 LEDs with adjustable intensity
• Metal contruction
• Illuminance 17,000 Lux at 100mm distance
• Various accessories
• 2 year

LE.1980 specification

• Number of LEDs:48
• Color temperature: 6,000 K
• Illuminance: 17,000 Lux at 100 mm distance
• For mounting diameters: 30-66 mm
• Internal diameter: 45 mm
• External diameter: 90 mm
• Output connector: Analog controller
• Intensity: Adjustable from 0-100 %
• Required power supply: LE.1992
