Mehr über die Serie SLX...
Leider wurde diese Beschreibung bisher nicht ins Deutsche übersetzt, daher finden Sie an dieser Stelle eine englische Artikelbeschreibung.

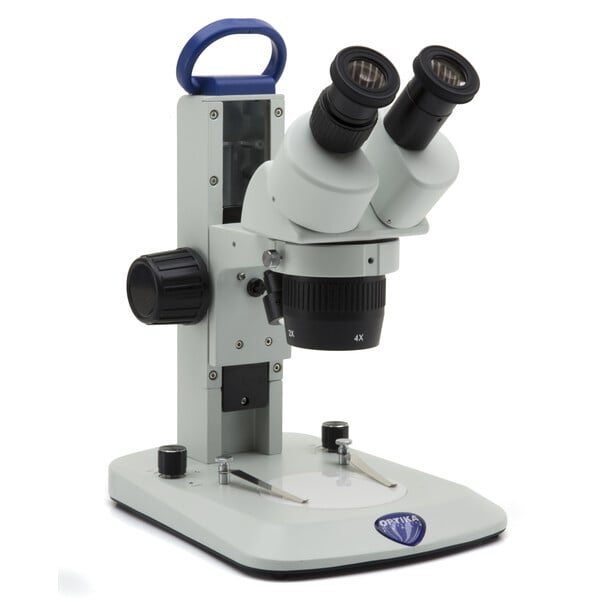

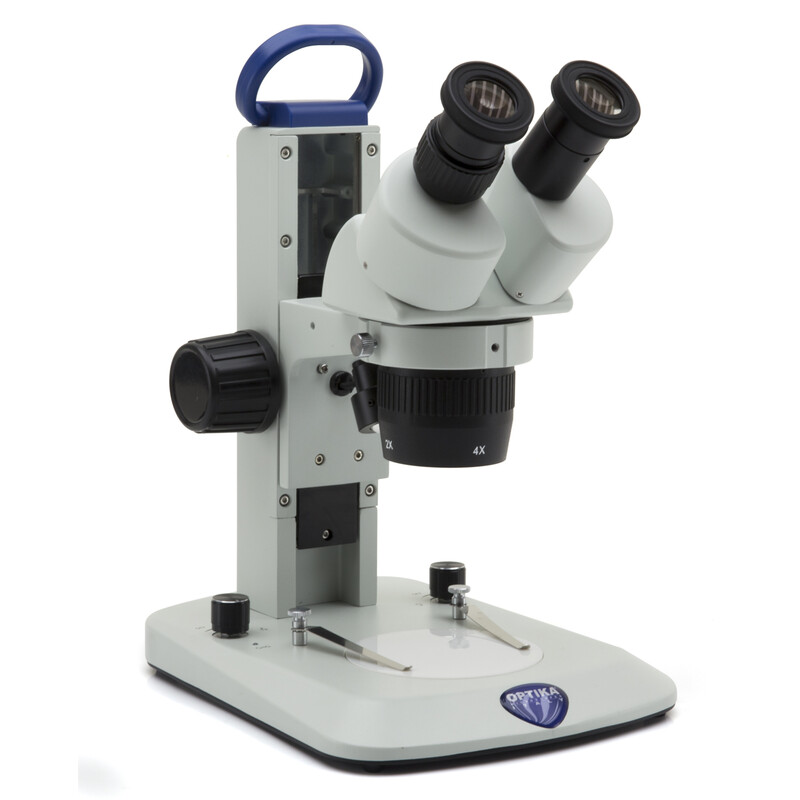

Optika Binocular stereomicroscope, 20x-40x
Observation Method - Transmitted Light:: Brightfield - Yes
Observation Method - Incident Light: Brightfield - Yes
Head:
- Type: Binocular
- Construction material: Aluminum & Plastic molds / Aluminum gears
- Inclination: 45°
- 360° rotating: Yes
- Interpupillary distance (mm): 45-71
- Dioptric adjustment: On left tube
- Head holder internal diameter (mm): 76
- Tube inner diameter (mm): 30
Eyepieces:
- Field number (mm): 21
- Magnification: 10x
- Micrometric scale: As optional
- Diameter of micrometer glass (mm): 23
- High eyepoint (for glass wearers): Yes
- Rubber cup: Yes
- Retractable protections: Yes
Objective
- Optical system: Greenough
- Anti-fungus treatment: Yes
- Objective Type: Achromatic
- Working distance (mm): 100
- Standard magnifications: 20x, 40x (rotating turret)
Focusing System
- Type: Coarse
- Coarse total travel (mm): 110
- Adjustable tension: Yes
- Head holder internal diameter (mm): 76
Stand
- Type: Fixed arm
- Handle: Yes
Stage
- White diffusion plate for transmitted ill.: Yes, diameter 100 mm
- Black/white contrast plate for incident ill.: As optional
- Specimen clips: Yes
Observation Method - Transmitted Light
- Type: EcoLED
- Brightness control: Manual
- Lifetime (hours): > 65,000
- Temperature (K): 6,300
Observation Method - Incident Light
- Type: EcoLED
- Brightness control: Manual
- Lifetime (hours): > 65,000
- Temperature (K): 6,300
Power Supply for Illumination
- Type: External
- Microscope connector: Jack, 2.1 mm
- Power plug type: Multi-plug (EU, UK, US)
- Input voltage: 100/240 Vac, 50/60 Hz
- Output voltage: 5 Vdc 500 mA
- LED indicator: Yes
- Rechargeable batteries: Yes
- Battery type: Ni-MH (3x, AA size)
- Working time of batteries (hours): 12
- Charging time of batteries (hours): 8
Accessories Included
- Dust cover: Yes
- User Manual: Digital version (downloadable)
Additional Information
- Maximum sample height (mm): 80
Product Dimensions
- Total height (mm): 365
- Head height (mm): 195
- Head width (mm): 130
- Head depth (mm): 140
- Base height (mm): 30
- Base width (mm): 205
- Base depth (mm): 280
- Product Weight (kg): 3.4
